PEEK bolts can be formed in one time by mans of injection technology, in which the processing cost is low, and the price is superior. It is more corrosion resistant than metal screws, and featured with non-rusty property, light weight, high temperature resistant, excellent electrical performance, and irradiation resistance. Nanjing Yuwei produces PEEK screws of the following specifications:
1. PEEK inner hexagon screw.
2. PEEK outer hexagon screw.
3. PEEK round head screw.
4. PEEK nut.
5. All kinds of PEEK screws, nuts, cap nuts, screws and bolts can be customized.
16 years of experience in production and R & D of PEEK, PI, PPS and other profiles and parts.
Advanced and mature peek profile extrusion production line.
Have the ability of injection molding and machining peek parts of various specifications.
Continuous extrusion production line, large injection molding machine, molding machine, five axis machining center, high precision CNC lathe and other processing equipment.
3D coordinate projector, friction and wear testing machine, microcomputer controlled electronic universal testing ma chine, surface hardness tester, etc.
Extruding peek bar, plate, tube and other profiles with com prehensive specifications and large stock.
All kinds of PEEK filaments and capillaries are extruded.
Peek profile extrusion can be customized according to cus tomer requirements.
Tick comprehensively analyze the material properties and constantly improve the formulation design and process.
Strictly control the enterprise standards and quality inspection process to ensure the factory quality of each product.
It has a good cooperative relationship with the raw material suppliers such as Victrex, vespl, German engineering plastics and other raw materials suppliers in the UK, with stable raw materials sources.
| Test items | Test criteria | Test conditions | Units | NJSSPEEK-1000 | NJSSPEEK-G1030 | NJSSPEEK-C1030 |
|---|---|---|---|---|---|---|
| Pure resin | 30% glass fiber | 30% carbon fiber | ||||
| Density | ISO1183 | Crystal | g/cm3 | 1.3 | 1.51 | 1.4 |
| Water absorption rate (3.2mm thick tensile bar, soaking test) | ISO62-1 | 24h, 23℃ | % | 0.07 | 0.04 | 0.05 |
| Balance, 23℃ | % | 0.4 | 0.4 | 0.3 | ||
| Tensile strength | ISO527 | Yield, 23℃ | MPa | 100 | 175 | 122 |
| Elongation at break | ISO527 | Fracture, 23℃ | % | 20 | 2.7 | 2.5 |
| Bending strength | ISO178 | Yield, 23℃ | MPa | 165 | 265 | 268 |
| Bending modulus | ISO178 | 23℃ | GPa | 4.1 | 11.3 | 8.9 |
| Compressive strength | ISO604 | 23℃ | MPa | 125 | 250 | 193 |
| Impact strength of simply supported beam | ISO179/1eA | There is a gap | kJ/m2 | 7 | 8 | 7 |
| ISO179/1U | No gap | kJ/m2 | 55 | 38 | ||
| Impact strength of cantilever beam | ISO180/A | There is a gap | kJ/m2 | 7.5 | 10 | 9 |
| ISO180/U | No gap | kJ/m2 | - | 60 | 45 | |
| Shore D hardness | ISO868 | 23℃ | 85 | 88 | 88 | |
| Melting point | ISO11357 | - | ℃ | 343 | 343 | 343 |
| Glass transition temperature | ISO11357 | Start | ℃ | 143 | 143 | 143 |
| Specific heat capacity | DSC | 23℃ | kJ/kg℃ | 2.2 | 1.7 | 1.8 |
| Coefficient of thermalexpansion | ISO11359 | Below Tg along the flow direction | ppm/K | 45 | 18 | 12 |
| Higher than Tg along the flow direction | ppm/K | 120 | 22 | 15 | ||
| Heat distortion temperature | ISO75-f | 1.8Mpa | ℃ | 152 | 315 | 315 |
| Thermal conductivity | ISO22007-4 | 23℃ | W/mK | 0.29 | 0.3 | 0.95 |
| Dielectric strength | IEC60243-1 | 2mm | kV/mm | 23 | 25 | - |
| Dielectric constant | IEC60250 | 23℃,1KHz | - | 3.1 | 3.2-3.4 | - |
| 23℃,50Hz | - | 3 | - | - | ||
| Volume resistivity | IEC60093 | 23℃,1V | Ω·cm | 1016 | 1016 | 105 |
| 275℃ | Ω·cm | 109 | - | - |
| Type | Specifications(mm) | Type | Specifications(mm) |
|---|---|---|---|
| Hexagon screw | M4X10 | Socket head cap screw | M2X8 |
| M4X15 | M3X5 | ||
| M4X20 | M3X20 | ||
| M5X8 | M4X10 | ||
| M5X10 | M4X15 | ||
| M5X15 | M4X20 | ||
| M5X20 | M5X8 | ||
| M5X30 | M5X10 | ||
| M6X16 | M5X15 | ||
| M6X20 | M5X20 | ||
| M6X25 | M5X30 | ||
| M6X30 | M5X35 | ||
| M6X40 | M6X10 | ||
| M8X15 | M6X16 | ||
| M8X20 | M6X20 | ||
| M8X25 | M6X25 | ||
| M8X35 | M6X30 | ||
| M8X40 | M6X35 | ||
| M8X50 | M6X40 | ||
| M10X25 | M6X50 | ||
| M10X30 | M8X20 | ||
| M10X40 | M8X25 | ||
| M10X45 | M8X35 | ||
| M10X50 | M8X50 | ||
| M10X65 | M10X25 | ||
| M12X25 | M10X30 | ||
| M12X35 | M10X40 | ||
| M12X50 | M10X45 | ||
| M12X60 | M12X25 | ||
| M12X65 | M12X30 | ||
| M12X110 | Countersunk head phillips screw | M3X10 | |
| Pan head slotted screw | M2.5X8 | M4X15 | |
| M2.5X14 | M5X12 | ||
| Pan head phillips screw | M3X10 | M5X17 | |
| M4X10 | M5X20 | ||
| M4X15 | M5X25 | ||
| M4X20 | M6X50 | ||
| M4X30 | M8X50 | ||

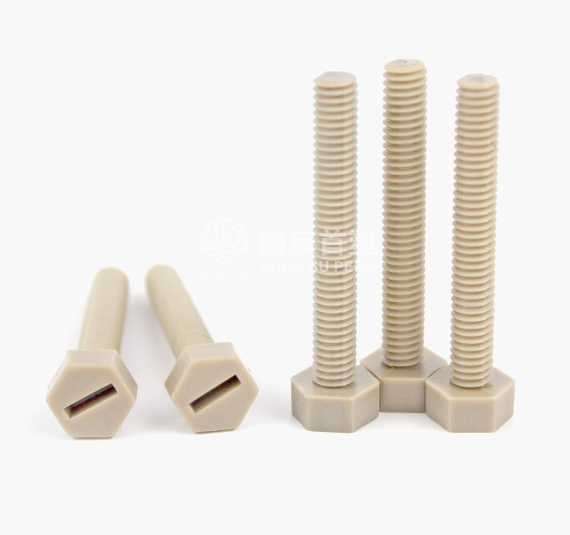

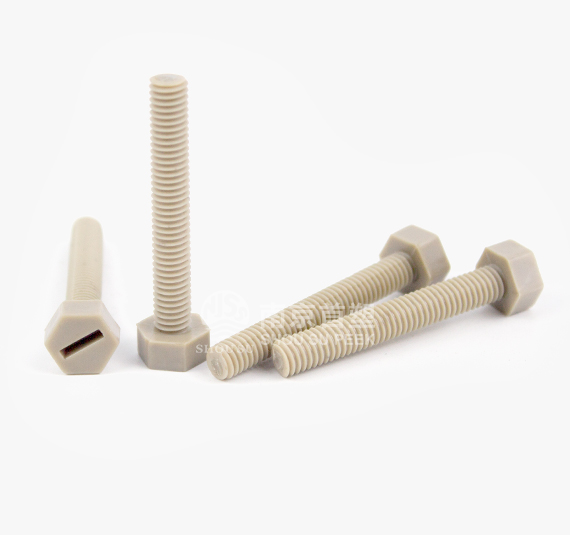

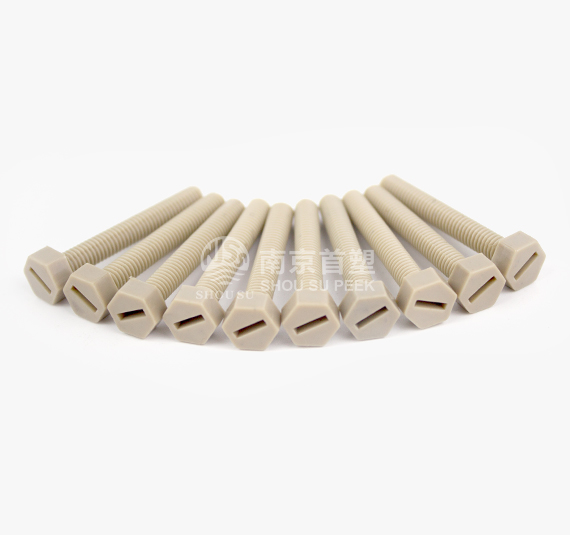

| M4X40 | Hexagon slotted screw | M4X10 | |
| M5X8 | M4X15 | ||
| M5X10 | M6X10 | ||
| M5X15 | M6X15 | ||
| M5X20 | M6X20 | ||
| M5X30 | M6X25 | ||
| M5X35 | M6X35 | ||
| M6X10 | M8X20 | ||
| M6X15 | Cylindrical head slotted screw | M5X8 | |
| M6X20 | M5X10 | ||
| M6X25 | M5X15 | ||
| M6X30 | M5X20 | ||
| M6X50 | M5X30 | ||
| M8X15 | M6X10 | ||
| M8X25 | M6X15 | ||
| M8X30 | M6X20 | ||
| M8X35 | M6X25 | ||
| M8X45 | M6X40 | ||
| Countersunk head slotted screw | M5X8 | M10X20 | |
| M5X12 | Hexagon socket set screw | M5X8 | |
| M5X17 | M6X10 | ||
| M6X10 | M8X10 | ||
| M6X18 | M8X15 | ||
| M4X10 | M8X20 | ||
| M6X18 | |||
| M6X33 | |||
| M6X43 |

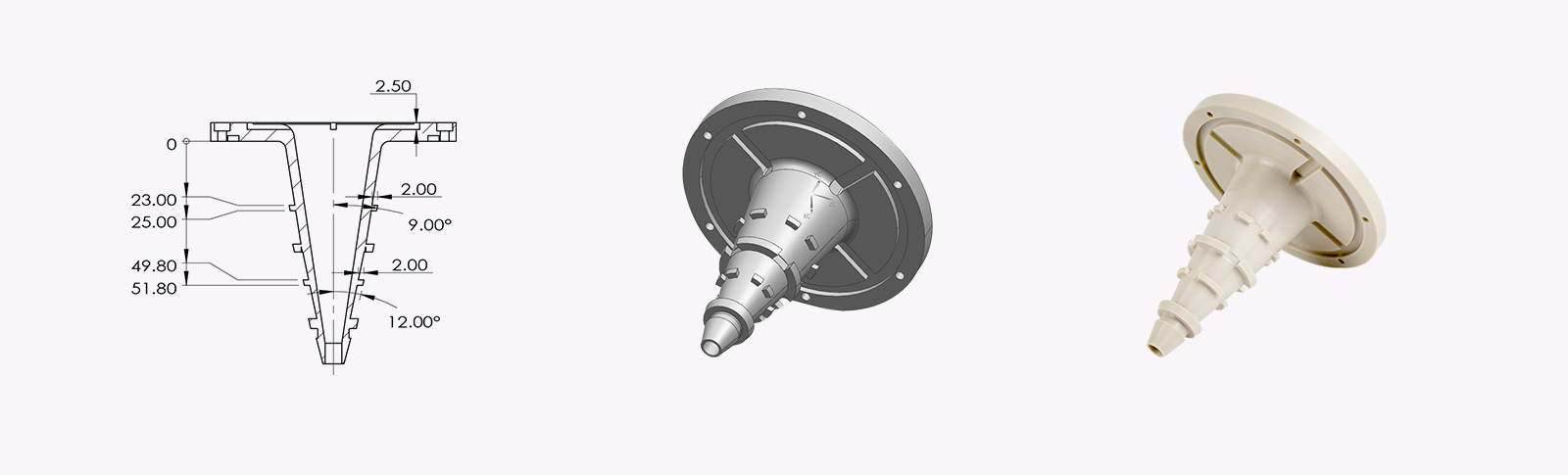

We also assist you in configuring and designing your machined plastic parts as required. Since we can understand what functions different plastics have and what types of processing can be implemented from a technical perspective, we can provide the most effective support for your practical application: whether it is material selection, the design of the most advanced CAD system, or the precise processing and customization of parts.
● Suggestions on plastic selection
● Function and producibility of audit structure
● Design technical products on the most modern CAD system
● Accurately assemble customized parts
● Cost savings in production and assembly
● Reduced material and component costs
● Additional construction resources
● Best function
