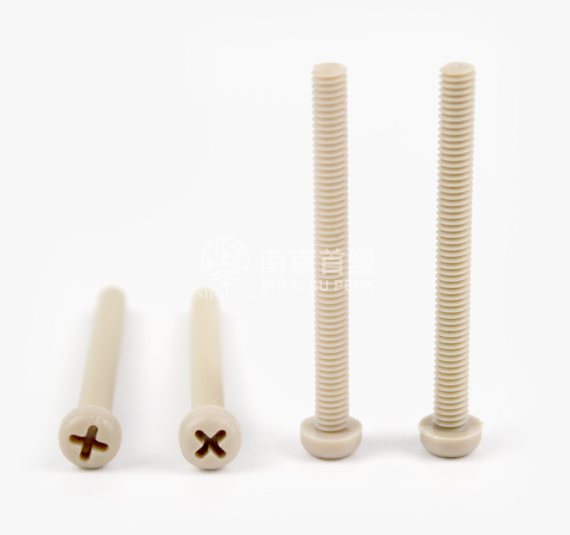

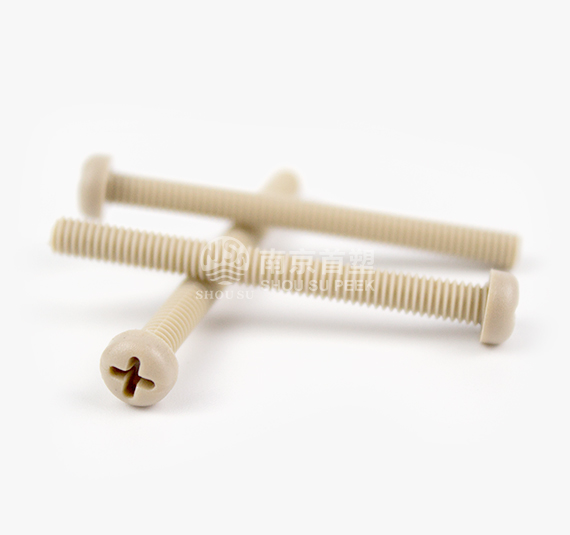

M4x40 pan head cross PEEK screw

PEEK bolts can be formed in one time by mans of injection technology, in which the processing cost is low, and the price is superior. It is more corrosion resistant than metal screws, and featured with non-rusty property, light weight, high temperature resistant, excellent electrical performance, and irradiation resistance. Nanjing Yuwei produces PEEK screws of the following specifications:

1. PEEK inner hexagon screw.

2. PEEK outer hexagon screw.

3. PEEK round head screw.

4. PEEK nut.

5. All kinds of PEEK screws, nuts, cap nuts, screws and bolts can be customized.

application area
Military industry and aerospac
Petrochemical industry
Automobile manufacturing
Medical and health care
Instrument and meter
Precision machinery
General machinery
Electronic semiconductor
Learn more
Company Honors
TECHNICAL

1-2.png  16 years of experience in production and R & D of PEEK, PI, PPS and other profiles and parts.

1-2.png  Advanced and mature PEEK profile extrusion production line.

1-2.png  Have the ability of injection molding and machining PEEK parts of various specifications.

EQUIPMENT

1-2.png  Continuous extrusion production line, large injection molding machine, molding machine, five axis machining center, high precision CNC lathe and other processing equipment.

1-2.png  3D coordinate projector, friction and wear testing machine, microcomputer controlled electronic universal testing ma chine, surface hardness tester, etc.

PRODUCT

1-2.png  Extruding PEEK rod, sheet, tube and other profiles with com prehensive specifications and large stock.

1-2.png  All kinds of PEEK filaments and capillaries are extruded.

1-2.png  PEEK profile extrusion can be customized according to cus tomer requirements.

QUALITY

1-2.png  Tick comprehensively analyze the material properties and constantly improve the formulation design and process.

1-2.png  Strictly control the enterprise standards and quality inspection process to ensure the factory quality of each product.

1-2.png  It has a good cooperative relationship with the raw material suppliers such as Victrex, vespl, German engineering plastics and other raw materials suppliers in the UK, with stable raw materials sources.

TECHNICAL
EQUIPMENT
PRODUCT
QUALITY
Product display
PEEK screw series
PEEK screw processing
PEEK screw manufacturer
PEEK nuts
PEEK screws
Learn more
Performance Table



Test itemsTest criteriaTest conditionsUnitsNJSSPEEK-1000NJSSPEEK-G1030NJSSPEEK-C1030
Pure resin30% glass fiber30% carbon fiber
DensityISO1183Crystalg/cm31.31.511.4
Water absorption rate (3.2mm thick tensile bar, soaking test)ISO62-124h, 23℃%0.070.040.04
Balance, 23℃%0.40.40.3
Tensile strengthISO527Yield, 23℃MPa100175260
Elongation at breakISO527Fracture, 23℃%202.71.7
Bending strengthISO178Yield, 23℃MPa165265380
Bending modulusISO17823℃GPa4.111.323
Compressive strengthISO60423℃MPa125250300
Impact strength of simply supported beamISO179/1eAThere is a gapkJ/m2787
ISO179/1UNo gapkJ/m25545
Impact strength of cantilever beamISO180/AThere is a gapkJ/m27.5109
ISO180/UNo gapkJ/m2-6045
Shore D hardnessISO86823℃858888
Melting pointISO11357-343343343
Glass transition temperatureISO11357Start143143143
Specific heat capacity

DSC

23℃kJ/kg℃2.21.71.8
Coefficient of thermalexpansionISO11359Below Tg along the flow directionppm/K45185
Below Tg along the flow directionppm/K120186
Heat distortion temperatureISO75-f1.8Mpa152315315
Thermal conductivityISO22007-423℃W/mK0.290.30.95
Dielectric strengthIEC60243-12mmkV/mm2325-
Dielectric constantIEC6025023℃,1KHz-3.13.2-3.4-
23℃,50Hz-3--
Volume resistivityIEC6009323℃,1VΩ·cm10161016105
275℃Ω·cm109--
Construction support

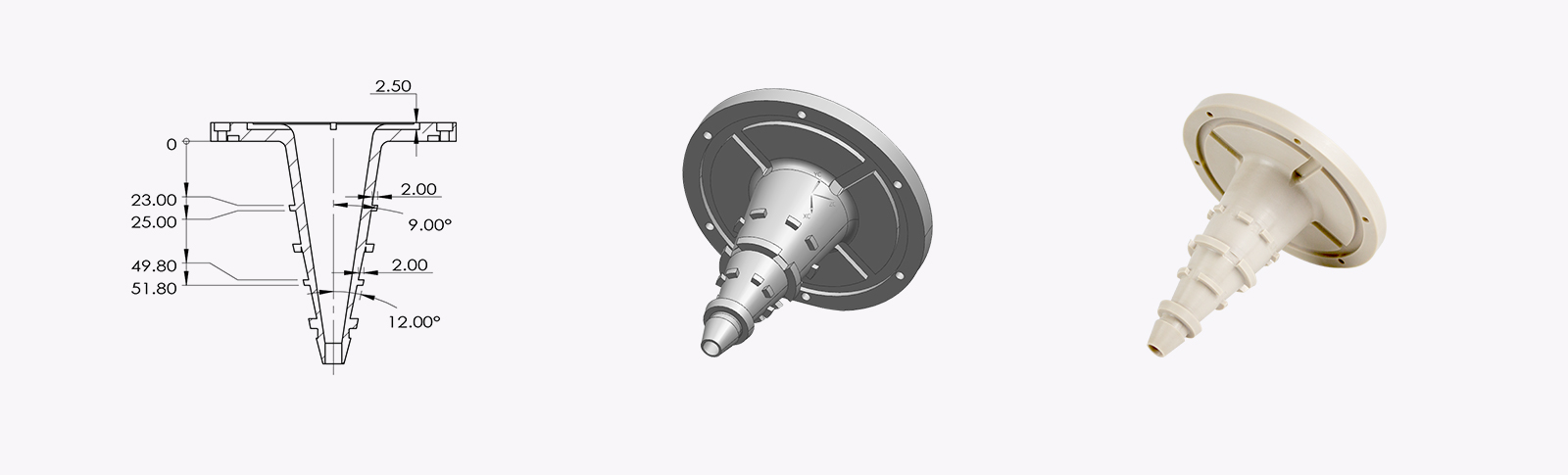

We also assist you in configuring and designing your machined plastic parts as required. Since we can understand what functions different plastics have and what types of processing can be implemented from a technical perspective, we can provide the most effective support for your practical application: whether it is material selection, the design of the most advanced CAD system, or the precise processing and customization of parts.

Our products and CNC plastic processing services:

● Suggestions on plastic selection

● Function and producibility of audit structure

● Design technical products on the most modern CAD system

● Accurately assemble customized parts

Advantages for you

● Cost savings in production and assembly

● Reduced material and component costs

● Additional construction resources

● Best function

Processing possibility
PEEK production

Focus on the R&D, design, production and composite modification of special engineering plastics such as PEEK, PI, PPS and PEI.

Process capability

Have the ability of continuous extrusion molding, injection molding, compression molding, machining molding and other molding processes.

Mold manufacturing

Design, processing, manufacturing and modification of extrusion mold, compression mold and injection mold.

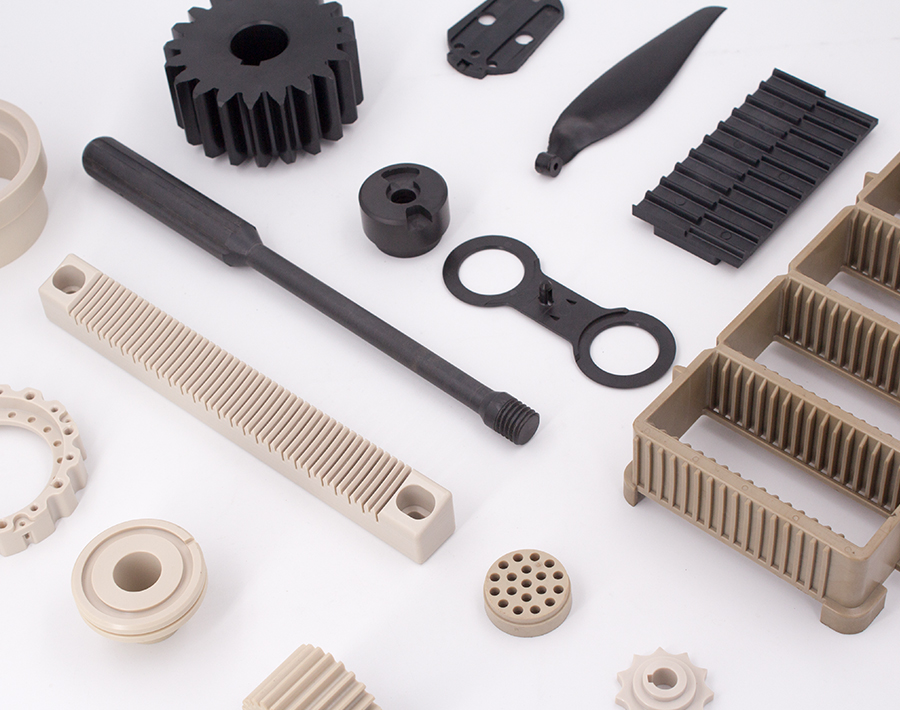

Customized processing

PEEK, PI, PPS, PEI and other parts and products are customized according to drawings and samples.

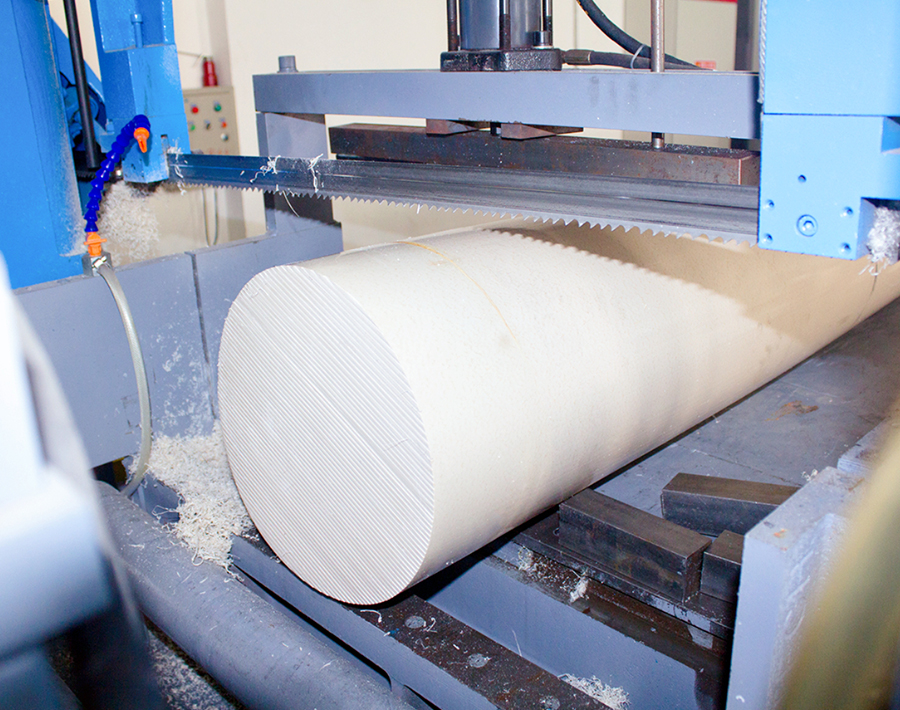

Extrusion molding

Continuous extrusion molding of PEEK, PI, PPS and other bars, plates, pipes and sheets.

Product development

The research and development and production of new products and fields of special engineering plastics will jointly promote the application of PEEK, PI and other special engineering plastics products in various industries.
