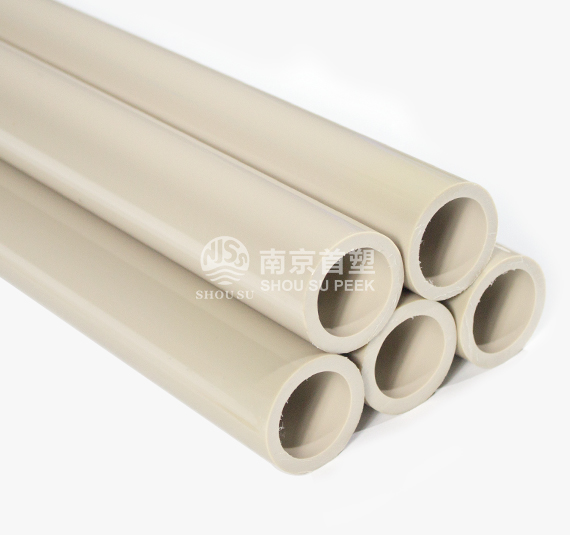

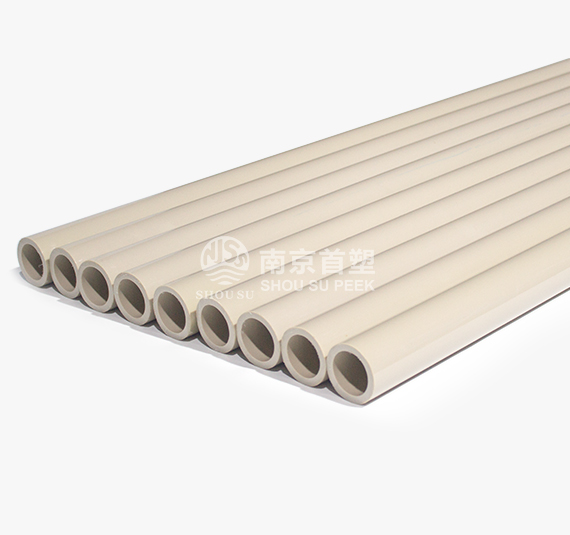

PEEK tube, also known as polyetheretherketone pipe in Chinese, not only has superior heat resistance compared to other high-temperature resistant plastics, but also has high strength, high modulus, high fracture toughness, and excellent dimensional stability. PEEK pipes made of high-performance PEEK materials are widely used in various industries, especially in the oil and gas industry and the semiconductor industry. Due to the comprehensive requirements of temperature, chemical resistance, creep resistance, thermal stability, and compression resistance, PEEK is often an ideal material.

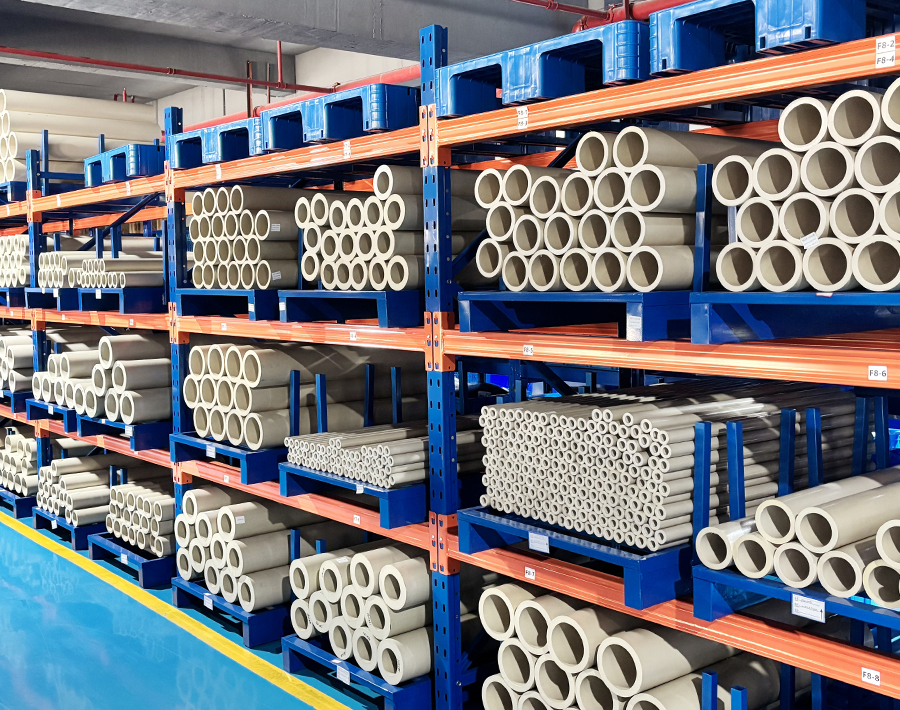

Nanjing Shousu has been focusing on PEEK production and processing for many years, and has the ability to produce PEEK pipes and PEEK rings of different sizes. We produce PEEK tubes and PEEK rings by extrusion molding, compression molding, injection molding and mechanical molding. We can customize the sizes of PEEK tubes and PEEK rings according to the customer's requirements. We maintain a large inventory year-round.
ODxIDxLength(mm) | Actual OD(mm) | Actual ID(mm) |
---|---|---|
40×20×1000 | 42.0 | 18.0 |
45×20×1000 | 46.5 | 18.0 |
50×25×1000 | 51.5 | 23.0 |
50×35×1000 | 51.5 | 33.0 |
55×35×1000 | 57.0 | 33.0 |
55×40×1000 | 57.0 | 38.0 |
60×40×1000 | 61.5 | 38.0 |
63×43×1000 | 64.0 | 44.0 |
70×45×1000 | 72.0 | 43.0 |
70×50×1000 | 72.0 | 48.0 |
80×50×1000 | 82.0 | 48.0 |
85×67×1000 | 87.0 | 66.0 |
90×60×1000 | 92.0 | 58.0 |
90×65×1000 | 92.0 | 63.0 |
100×75×1000 | 102.0 | 73.0 |
100×80×1000 | 102.0 | 78.0 |
110×70×1000 | 112.0 | 68.0 |
130×100×1000 | 132.0 | 98.0 |
130×110×1000 | 132.0 | 108.0 |
135×90×1000 | 137.0 | 88.0 |
135×95×1000 | 137.0 | 93.0 |
135×100×1000 | 137.0 | 98.0 |
135×105×1000 | 137.0 | 103.0 |
140×115×1000 | 142.0 | 113.0 |
140×120×1000 | 142.0 | 118.0 |
155×125×1000 | 157.0 | 123.0 |
160×140×1000 | 162.0 | 138.0 |
165×125×500 | 167.0 | 123.0 |
165×135×1000 | 167.0 | 133.0 |
175×155×1000 | 177.4 | 153.0 |
180×155×1000 | 183.0 | 152.0 |
190×160×1000 | 193.0 | 157.0 |
200×180×1000 | 203.0 | 178.0 |
220×195×1000 | 223.0 | 192.5 |
260×220×1000 | 263.0 | 217.0 |
Other specifications can be customized |
